Excellence in Wire Mesh Machines

 HYDRUALIC CRIMPED WEAVING MACHINE FOR MANUFACTURING SPRING STEEL AND MS IRON WIRE MESH, USED IN STONE CRUSHER PLANT, PIG IRON PLANTS, VIBRATING SCREENS. WITH WIRE RANGES FROM 2 MM TO 5 MM WIRE DIA AND OPENING FROM 3 MM TO 120 MM. MODEL: RSEW/HW/01 FEATURE : PLC CONTROLLED SYSTEM AUTO / MANUAL CONTROL AVILABLE SIZE - 1.5 METER / 2 METER / 2.5 METER

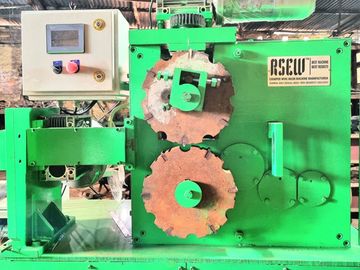

 PLC CONTROLLED AUTOMATIC CRIMPING MAKING MACHINE WITH SELF-CRIMPING AND AUTOMATIC CUTTING OPTIONS.

FEATURES: TOUCH SCREEN HMI & PLC CONTROLLED PLC LOGIC / INBUILT STORAGE FOR DATA AUTOMATIC DEPTH ADJUSTMENT AUTOMATIC CRIMPING / LENGTH CUTTINGS

WIRE CAPACITY - 2 MM TO 12MM WIREA DIA

OPENING  : 3 MM TO 100 MM

 HYDRUALIC PRESS BENDING MACHINE. USED FOR BENDING SHEET AND CRIMPED WIRE MESH. THICKNESS RANGES FROM 1 MM TO 12 MM THICKNESS WIRE DIA.SHEET BENDING CAPACITY UPTO: 8 MM.

MODEL: RSEW/HP/01

FEATURE : ELECTRIC CONTROLLED PANEL AVAILABLE SIZE- 1.5 METER / 2 METER / 2.5 METER

 MACHENICAL POWER LOOM MACHINE FOR MANUFACTURING SPRING STEEL AND MS IRON WIRE MESH, USED IN STONE CRUSHER PLANT, PIG IRON PLANTS, VIBRATING SCREENS.

WITH WIRE RANGES FROM 2 MM TO 5 MM WIRE DIA, AND OPENING FROM 3 MM TO 100 MM. WITH MOTOR CAPACITY OF 10 H. P 960 R. P.M

SIZES: 1.5 METER / 2 METER / 2.5 METER FEATURES : MANUAL

 CRIMPED WIRE CRIMPING MACHINE. THIS PRODUCT IS PRESENTED IN NUMEROUS OF SPECIFICATIONS. USED FOR MANUFACTURING WIRE MESH, CRIMPED WIRE MESH AND VIBRATING SCREEN. WITH WIRE CAPACITY FROM 2 MMTO 12 MM WIRE DIA. MOTOR CAPACITY 5 H.P 1440 R.P.M LABOUR REQUIRED: 2

TYPE : MANUAL RUN WITH STARTER

 USED FOR MANUFACTURING WIRE MESH, CRIMPED WIRE MESH AND VIBRATING SCREEN. WITH WIRE CAPACITY FROM 2 MMTO 5 MM WIRE DIA. MOTOR CAPACITY 5 H.P 1440 R.P.M LABOUR REQUIRED: 2

TYPE : MANUAL RUN WITH STARTER

HYDRUALIC PRESS BENDING MACHINE. USED FOR BENDING SHEET AND CRIMPED WIRE MESH. THICKNESS RANGES FROM 1 MM TO 5 MM THICKNESS WIRE DIA.SHEET BENDING CAPACITY UPTO: 3 MM.

MODEL: RSEW/HP/02

FEATURE : ELECTRIC CONTROLLED PANEL AVAILABLE SIZE- 1.5 METER / 2 METER / 2.5 METER

 AUTOMATIC WIRE CRIMPING MAKING MACHINE. PROVIDES A VARIETY OF WIRE OPENING IN A SINGLE MACHINE.THE OPENING RANGES FROM 2 MM TO 100 MM. WIRE CAPACITY UPTO 12 MM WIRE DIAMETER.THIS MACHINE COMES WITH AUTOMATIC LENGTH CUTTING. CONTROL PANEL WITH AUTOMATIC AND MANUAL CONTROL & POWERED UP WITH TWO MOTORS. MODEL : RSEW/AC/01 FEATURES: AUTOMATIC CRIMPING AUTOMATIC LENGTH CUTTING.

R S ENGINEERING WORKS WITH A EXPERIENCE OF 20 YEARS IN WIRE MESH MANUFACTURING FIELD HAS COME UP WITH VIBRATING SCREEN MESH AS PER THE CUSTOMER DEMANDS. THE HOLE SIZE AND THE DIMENSIONS IS AS PER THE REQUIREMENTS OF CUSTOMERS.

PERFECTIONS: 1% OPENING TOLERANCE.

QUALITY : GRADE 1 USHA MARTIN & TATA PREMIUM GRADE WIRE.

 FULLY AUTOMATIC SINGLE WIRE CHAIN LINK FENCE MACHINE.THE AUTOMATIC CHAIN LINK FENCE MACHINE IS WELDED OF HIGH-QUALITY STEEL AND CHANNEL STEELWITH A PLC CONTROL SYSTEM, SO THE FRAME OF THE MACHINE WILL BE MORE STABLE AND STRONG WIRE DIAMETER 1.8-4.0 MM & MESH SIZE 25*25- 100*100 MM RAW MATERIALGALVANIZED WIRE, PVC COATED WIRE, ETC.

 THE PRODUCTS PRODUCED BY THIS MACHINE ARE WIDELY USED IN NATIONAL DEFENSE, RAILWAYS, HIGHWAYS, FARMING AND ANIMAL HUSBANDRY FOR PROTECTION AND FENCING.

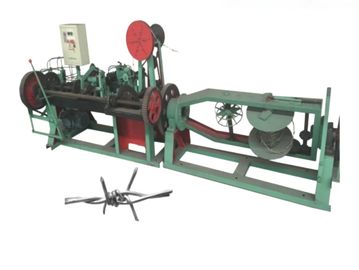

 PROUDCTION CAPACITY (1200 KGS /DAY) PRODUCING SPEED 3'’(540M) 4''(720M) 5'’(900M) 6''(1080M) PER/MIN LINE WIRE DIAMETER 2.0-3.2 MM BARBED WIRE DIAMETER 1.8-2.4 MM

AUTOMATIC WELDED WIRE MESH MAKING MACHINE WELDED WIRE MESH IS ONE POPULAR MATERIALS IN CONCRETE, CONSTRUCTION AND INDUSTRY. IT IS MADE OF LOW CARBON STEEL WIRE, STAINLESS STEEL WIRE AFTER WELDING AND SURFACE TREATING. WE HAVE ENTERED IN THE MARKET WITH THE DURABLE RANGE OF WELDED WIRE MESH MACHINES. KEY FEATURES: SERVO SYSTEM ACCURATE SIZES & DIMENSIONS. GREAT WELDING & SUPERIOR ELECTRODE QUALITY. CUSTOM LENGTHS SELF COILING FUNCTIONS
